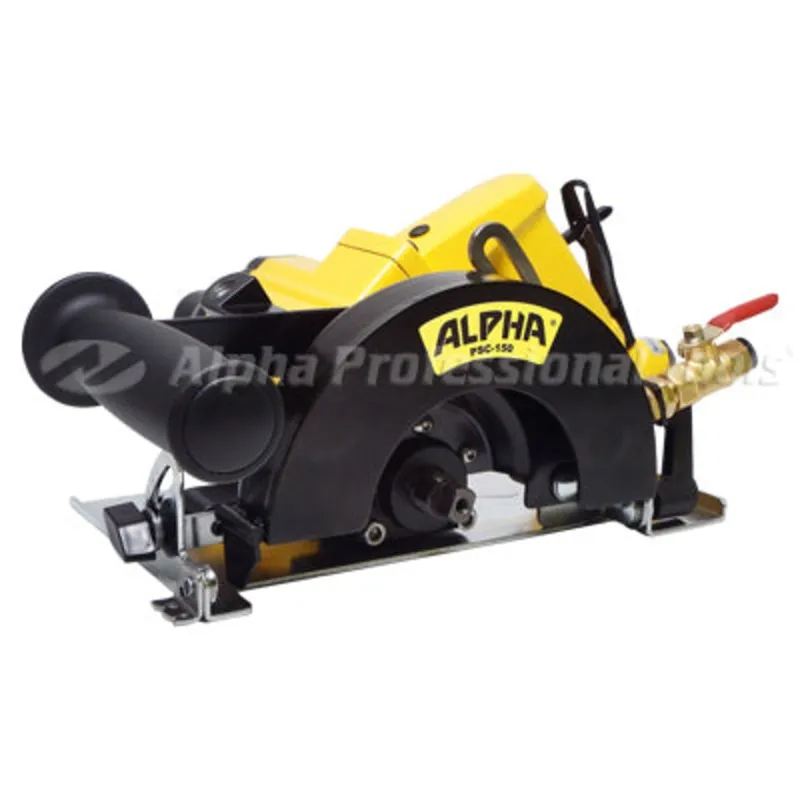

Alpha PSC-150 Pneumatic Stone Cutter 6″
Alpha is excited to introduce a new industrial quality pneumatic stone cutter, called the PSC-150, which is equipped with a 2 hp motor, with a speed governor in the motor that regulates the air consumption according to the torque needed for the application. This regulation includes producing enough torque to cut 1-1/4 (3cm) stone slabs in one pass. The PSC-150 offers kink-free water and air hoses to improve the maneuverability of the stone cutter. To ensure a long maintenance interval, we also recommend using the manifold system that comes with a regulator and filter to catch the debris and moisture delivered by compressed air.
Features
-
2 HP Pneumatic powered motor with speed control governor
-
Capable of miter cutting 1- (3cm) material with ease
-
Kink-free water and air hoses for easy maneuverability and reducing operator fatigue
-
Great for sink-hole cutting, groove cutting, and rodding applications
-
2,000 hour duty cycle
-
Comes with an eclipse II 6 Blade and a bottle of rust inhibitor oil
-
Recommended for: Granite/Eng. Stone
-
Alpha PSC-150 is a pneumatic powered motor, you can save the repair and maintenance costs of electric stonecutters when sink-hole cutting and groove-cutting for rodding applications.
-
Alpha offers a carriage that retrofits on the Alpha Guide Rail System to support the application of making precise miter cuts for the perfect lamination.
-
It can utilize a variety of consumables including the Alpha Katana 6 for porcelain panels and slabs, Hot-Rod 4 for 1/4 steel rods and 1/8 fiber glass rods. For marble applications, a Libero 5 blade is recommended since most marble slabs are 3/4 (2cm) thick or less.
Specifications
-
Air Pressure: 90 PSO (6.2 bar)
-
Air Consumption Min: 929 l/min 32 CFM / 1 HP*
-
Air Consumption Max: 48 CFM / 2HP
-
No Load Speed: 8,500 RPM
-
Air Inlet: NPSM
-
Water Inlet: BSPP
-
Arbor: (22.23mm)
-
Max. HP: 2.0 HP
-
Cutting Disc Diameter: 6 (150mm)
-
Weight: 10.3 lbs.
- Can be used wet or dry
-
Equipment included:
-
(3) Flanges
-
(2) Bolts (M6X20 Left) / (M6x20 Left)
-
(1) Side Handle
-
(1) Combination Wrench (9mm)
-
(1) Open End Spanner Wrench (22mm)
-
(1) Air Hose (15ft / 4.5m)
-
(1) Water Hose (15ft / 4.5m)
-
(1) Rust Inhibitor Oil (8oz / 237 ml) (AIR-008)
-
(1) Alpha Eclipse II 6 Blade (DEE006)
-
(2) Muffler
-
(1) Reduced Flow Air Inlet Fitting (3001-0084)
-
(2) Hook & Loop Strap
-
