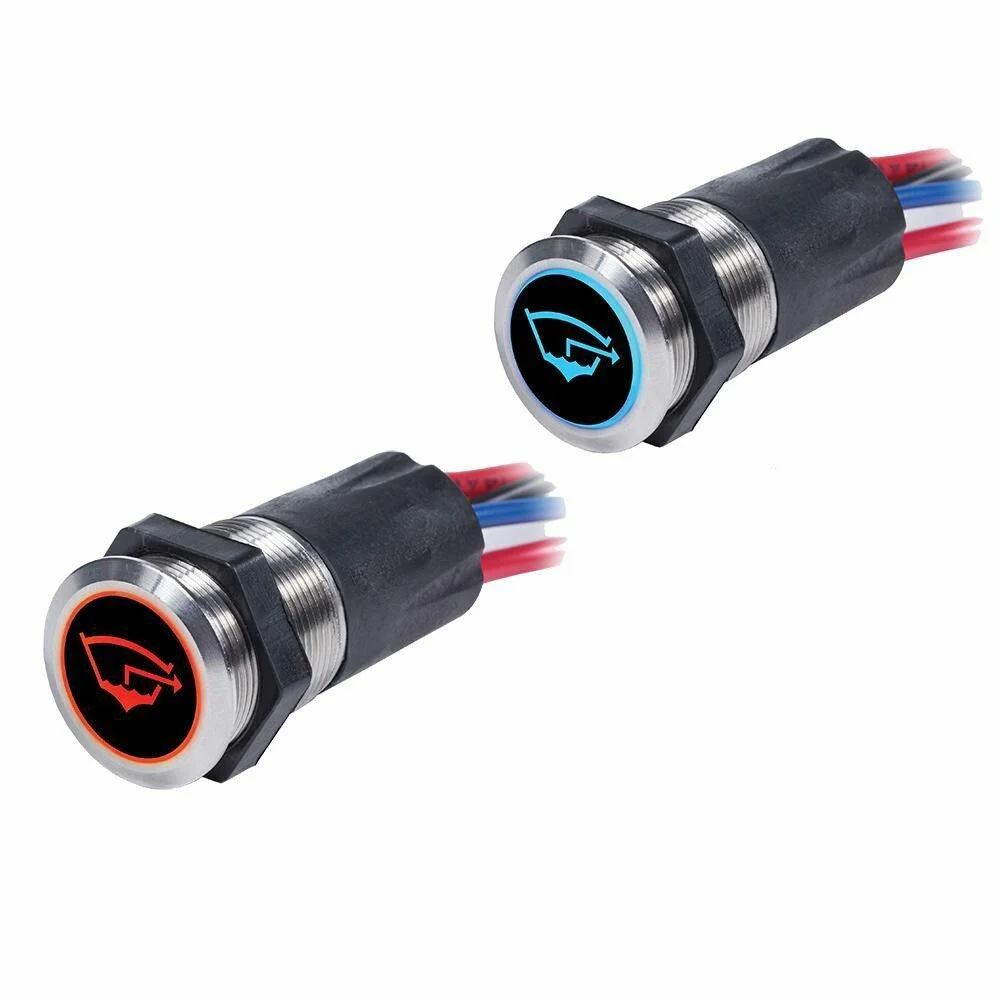

The Blue Sea 15A Push Button Backlit Switch OFF-ON (4180-BSS) from Nomadic Supply Company®.
Blue Sea 4180 15a Push Button Backlit Switch Off-on
Blue Sea 15A Push Button Backlit Switch OFF-ON (4180-BSS) Features:
- Backlit button is blue when OFF and red when ON
- Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
- Additional 50 ICON label kit sold separately
Blue Sea 15A Push Button Backlit Switch OFF-ON (4180-BSS) Specifications:
- Action: OFF-ON
- Amperage: 15A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum Voltage: 15V DC
- Maximum LED Operating Current: 20mA
- Switching Cycles: 10,000
- Temperature Range: -20°C to 55°C
- Termination: 3″ – Bare Wire Pigtail
- Wire Size: Black and Blue Wires 18 AWG / Red and Red/White Wires 14AWG
- Backlit button is blue when OFF and red when ON
- Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
| Action | OFF-ON |
| Amperage | 15A @ 12V DC |
| Nominal Voltage | 12V DC |
| Maximum Voltage | 15V DC |
| Maximum LED Operating Current | 20mA |
| Max Panel Thickness | 0.24in (6.1 mm) |
| Mounting Hole | 7/8″ (22mm) |
| Switching Cycles | 10,000 |
| Temperature Range | -20°C to 55°C |
| Termination | 3″ – Bare Wire Pigtail |
