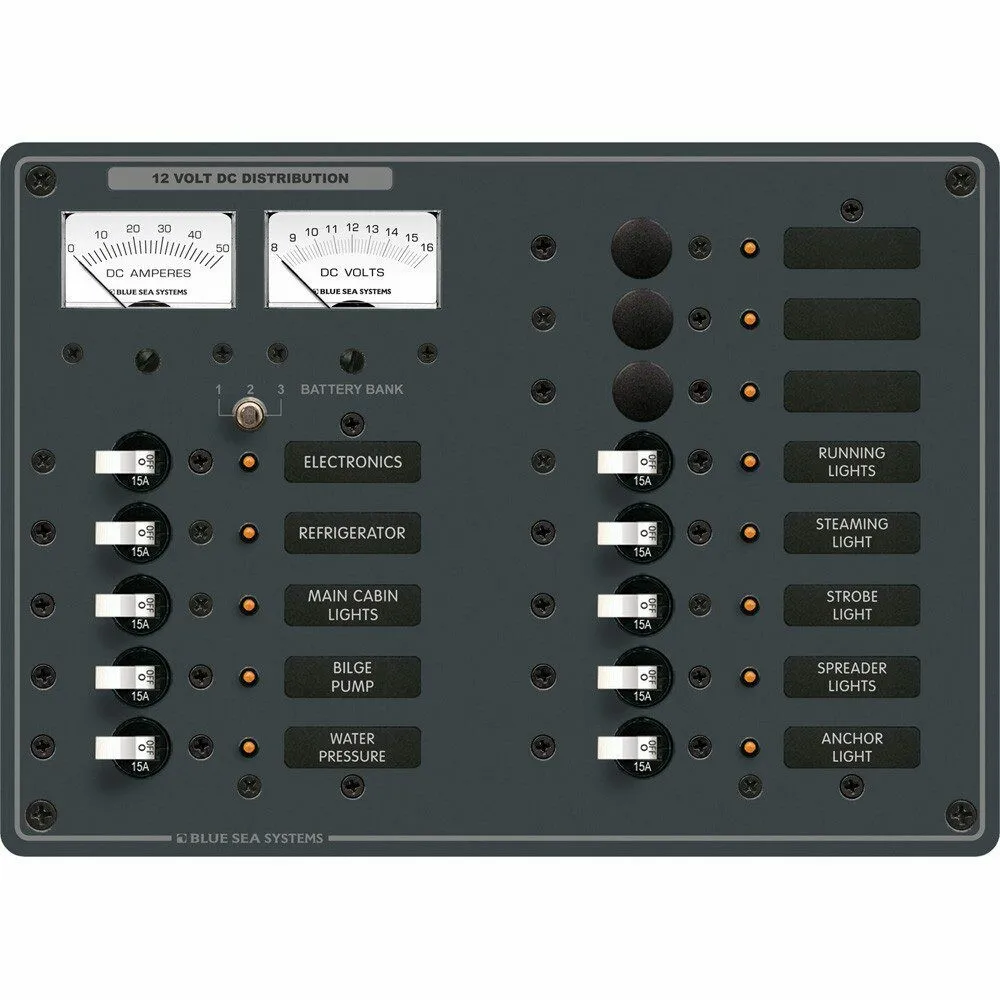

Blue Sea Systems 8068 DC 13 Position Toggle Branch Circuit Breaker Panel from Nomadic Supply Company®
Blue Sea DC Panel 13 Position with Voltmeter and Ammeter (8068-BSS) Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Includes set of 30 common DC labels
- Label backlighting pre-installed
- All LEDs installed
- Detailed installation instructions and cutout template
- 8028, 8-16 Volt DC Micro Voltmeter
- 8041, 0-50 Amp DC Micro Ammeter
- 10 15A Single Pole Circuit Breakers
- Toggle Branch Circuit Breaker Panel
Blue Sea DC Panel 13 Position with Voltmeter and Ammeter (8068-BSS) Specifications:
- Positions: 13
- Nominal Voltage: 12v DC
- Maximum Amperage: 50A
- Height: 7.5″
- Width: 10.5″
- Depth: 3″
- Weight: 4.2 lbs
Blue Sea DC Panel 13 Position with Voltmeter and Ammeter (8068-BSS) Includes:
- (10) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A
- (1) 8030 Basic DC Panel Label Set – 30 Labels
- (1) 8028 DC Micro Voltmeter – 8 to 16v DC (Meter)
- (1) 8041 DC Micro Ammeter – 0 to 50A w/ Shunt (Meter)
Blue Sea DC Panel 13 Position with Voltmeter and Ammeter (8068-BSS) Documents:
Blue Sea DC Panel 13 Position with Voltmeter and Ammeter (8068-BSS) Owner’s Manual
