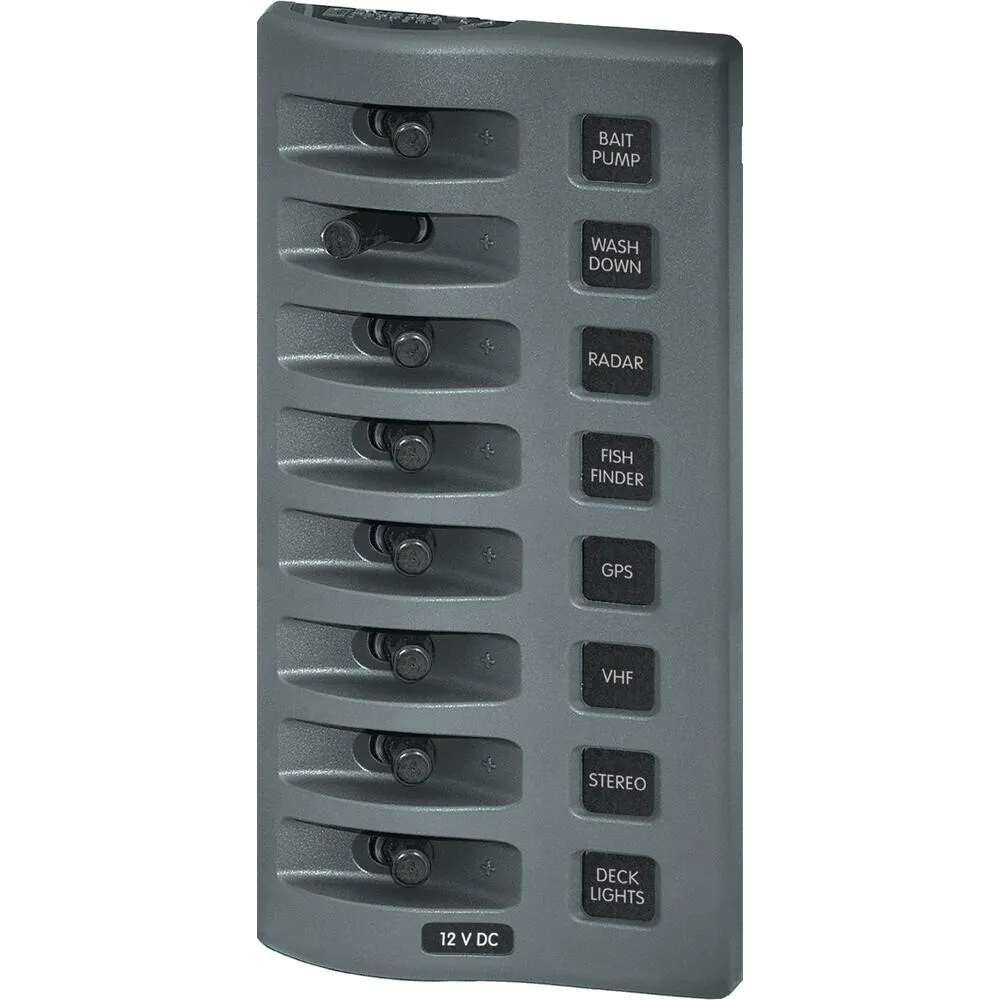

The Blue Sea WeatherDeck Waterproof Switch Panel 8 Position (4309-BSS) from Nomadic Supply Company® is an IP67 waterproof 8-circuit switch panel rated 15A per circuit at 12V DC, with integrated switch guards, UV-stabilized reinforced polycarbonate construction, and four mounting orientations.
Blue Sea WeatherDeck Waterproof Switch Panel 8 Position (4309-BSS) Features:
- Integrated switch guards reduce the risk of accidental switching
- Panels can be mounted in four different orientations
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
Blue Sea Systems Weatherproof:
Waterproof
Blue Sea Systems Positions:
8
Blue Sea Systems Nominal Voltage:
12V DC/24V DC
Blue Sea Systems Circuit Protection:
None
Blue Sea Systems Maximum Amperage:
15A @ 12V DC (per circuit)
Blue Sea Systems Panel Cumulative Rating:
45A
Blue Sea Systems Material:
Reinforced Polycarbonate
Blue Sea Systems Height:
7.70″(195.58 mm)
Blue Sea Systems Width:
3.88″(98.55 mm)
Blue Sea Systems Depth:
2.50″(63.5 mm)
Blue Sea Systems Weight:
1.55lb (0.7 kg)
