Compact. Reliable. Locker-Ready.

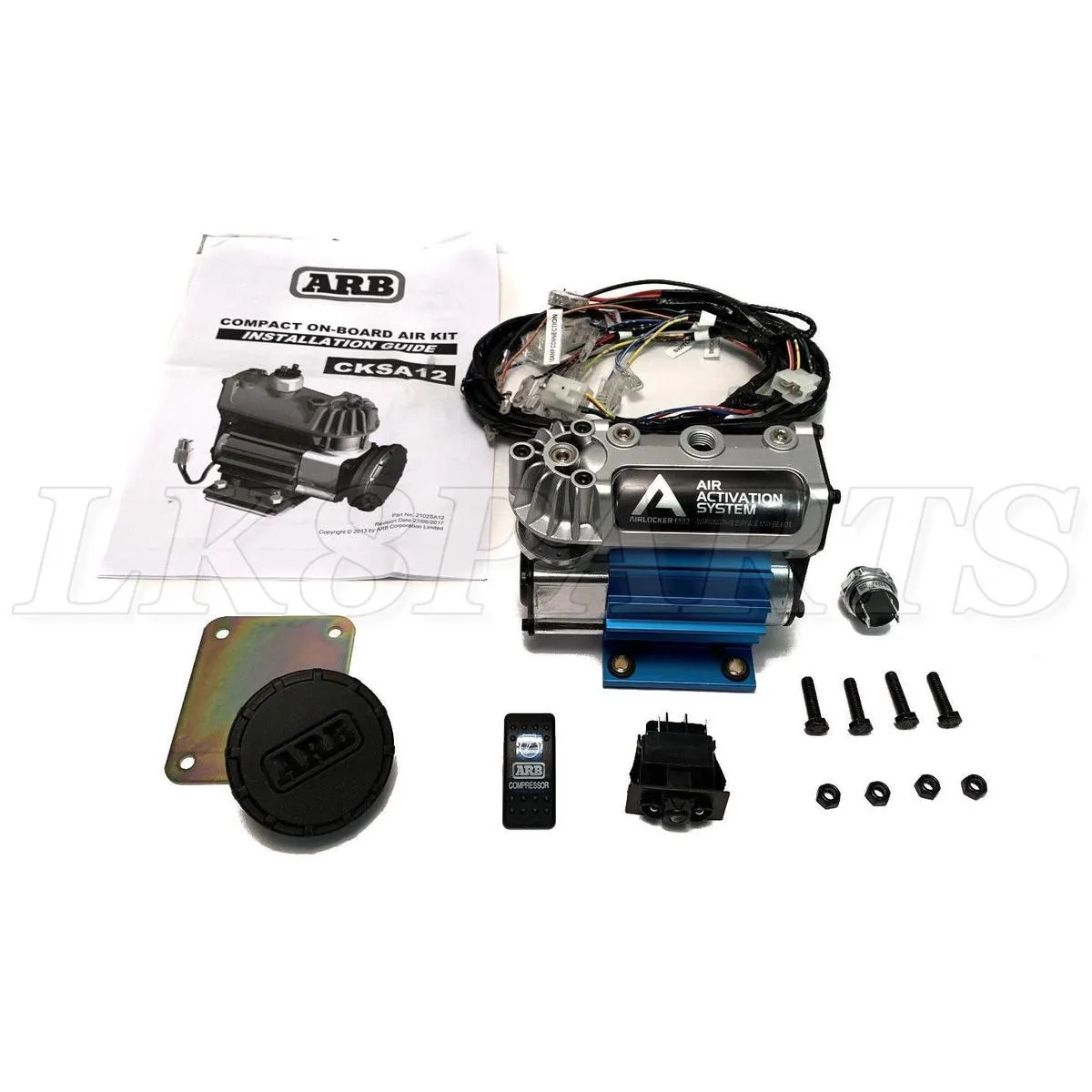

Looking for a lightweight, ultra-compact compressor to run your ARB Air Locker? The ARB CKSA12 is your go-to. Small enough to mount almost anywhere, this 12V on-board compressor delivers reliable performance for locker engagement and light-duty air needs out on the trail.
Whether you’re adjusting tire pressures or just need a solid backup source of air, this unit gives you compressed air anywhere your truck goes. Plus, with a solid duty cycle and IP55 rating, it’s built to handle the real-world abuse of off-road life.
Key Features:
-
Hard anodized cylinder bores for reduced friction
-
Teflon-impregnated carbon fiber piston seals for longer life
-
Anodized heat-dissipating mounting bracket (can be rotated 180)
-
Built from lightweight, high-strength engineering materials
-
Relocatable splash-resistant air filter
-
Fully sealed for dust and moisture resistance (IP55 rating)
-
Tested for current draw, flow rate, and leaks at the factory
-
3-year warranty from ARB
Performance Specs:
-
Voltage: 12V
-
Max Pressure: 100 PSI
-
Max Amps: 9
-
Duty Cycle: 35% @ 21/39 (21 minutes on / 39 off)
-
Air Flow @ 0 PSI: 0.98 CFM
-
Air Flow @ 29 PSI: 0.70 CFM
-
Weight: 3.3 lbs
-
Dimensions: 6.4″ L x 3.5″ W x 4.8″ H
Ideal For:
-
Activating ARB Air Lockers
-
Inflating small tires or camping gear (optional Pump-Up Kit recommended)
-
Backup onboard air supply for light trail use
-
Ultra-compact mounting in engine bays or cargo areas
Part Number: CKSA12
Installation Notes:
-
Mounts easily in tight spaces
-
Air filter assembly can be relocated for cleaner intake air
-
Add Pump-Up Kit (171302) for inflation use
-
Pair with ARB Air Lockers for full locker control
Frequently Asked Questions:
Q: Is this compressor enough to inflate full-size off-road tires?
A: It’s not built for large tire inflation. For that, check out the CKMA12 or CKMTA12 compressors.
Q: Can this power both front and rear lockers?
A: Yes, but with reduced duty cycle. Its ideal for single or dual locker use with minimal air demand.
Q: Is this waterproof?
A: Its IP55 ratedresistant to water spray and dust, but not submersible.
Q: Can it be mounted inside the vehicle?
A: Yesits quiet and compact enough to mount in the cab or storage area.
Part Number: CKSA12
