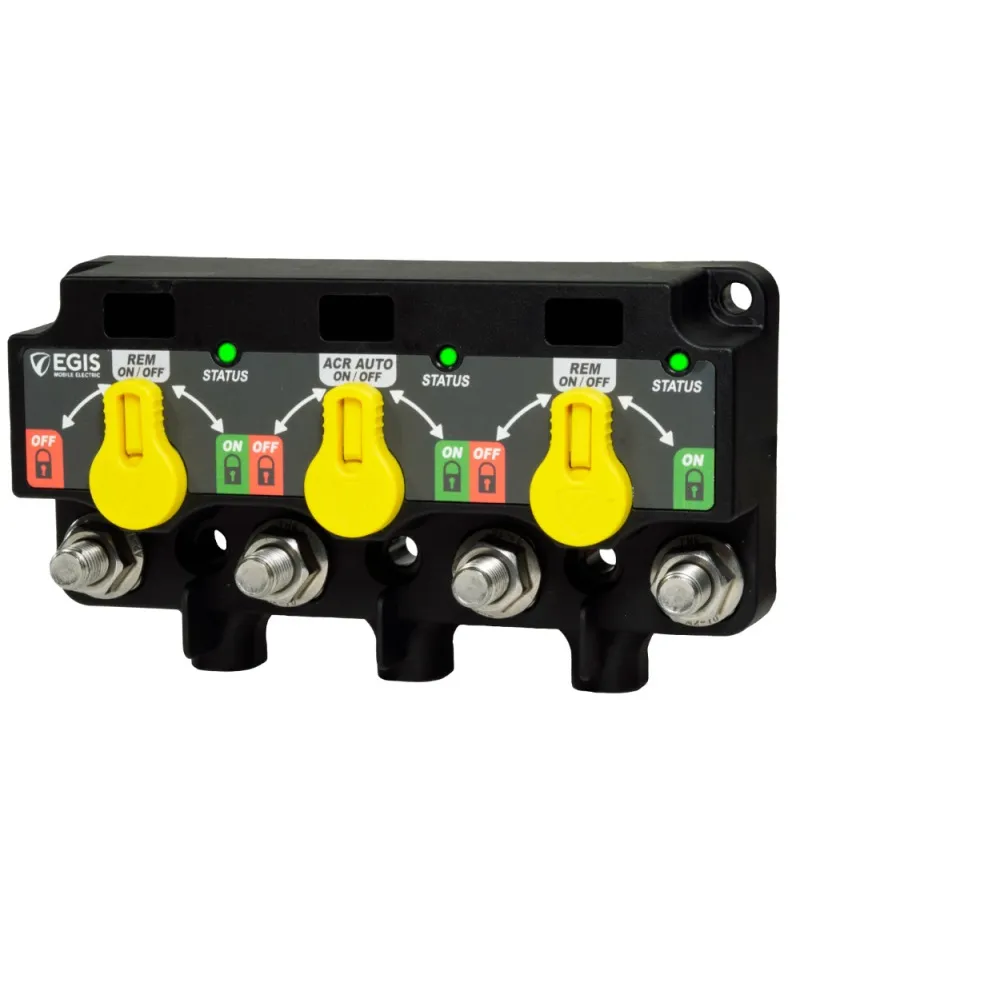

The Egis XD Triple Flex Automatic Charging Relay w/ Knobs (8730-1535) from Nomadic Supply Company® delivers professional-grade power management with advanced bi-stable solenoid technology and intuitive manual override controls. The Egis XD Triple Flex Automatic Charging Relay w/ Knobs (8730-1535) features sealed IP67/IP6K9K construction with stainless steel hardware and integrated pressure regulation for reliable operation in harsh environments.
Engineered with space-saving design principles, the Egis XD Triple Flex Automatic Charging Relay w/ Knobs (8730-1535) reduces mounting space requirements by 35-75% compared to conventional relay systems while maintaining exceptional 500-amp continuous current capacity. The programmable DIP switch configuration allows installers to customize relay functions for diverse applications, while the front-facing LED status display provides immediate visual feedback for system monitoring.
Built for demanding mobile electronics installations, the Egis XD Triple Flex Automatic Charging Relay w/ Knobs (8730-1535) from Nomadic Supply Company incorporates weatherproof labeling systems and protective terminal covers for professional installations. The three-position manual override knobs enable individual relay control with lock-in capabilities, ensuring operators maintain complete system authority during maintenance and emergency situations.
Egis XD Triple Flex Automatic Charging Relay w/ Knobs (8730-1535) Features:
- LED STATUS DISPLAY: Easy to see front facing LED indicator provides visual device status, remote LED replicat
- 3-POSITION MANUAL OVERRIDE: Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.
- 40 CIRCUIT LABEL SHEET INCLUDED: Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.
- PROTECTIVE COVER INCLUDED: Protects terminal studs and cable terminal edges from inadvertent shorts to eac
- STAINLESS HARDWARE: Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.
- PROGRAMMABLE: Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.
- SMALLER FOOTPRINT: XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.
- INTEGRATED VENT: High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.
- Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
- Intuitive Manual Control: Option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
- Simple Programmability: Via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
- 35-75% Reduction in Mounting Space & Product Weight: Via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
- Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.
- 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
Egis XD Triple Flex Automatic Charging Relay w/ Knobs (8730-1535) Specifications:
- TOTAL CONTINUOUS CURRENT (AMPS): 500
- MAX CRANKING CURRENT (AMPS): 1500
- MECHANICAL SWITCHING LIFE: 1,000,000 Cycles
- VOLTAGE RANGE (V DC): 8 – 36
- OFF-STATE CURRENT DRAW (mA): 1.3
- STATE CHANGE CURRENT: 5A @ 12 Vdc / 3A @ 24 Vdc
