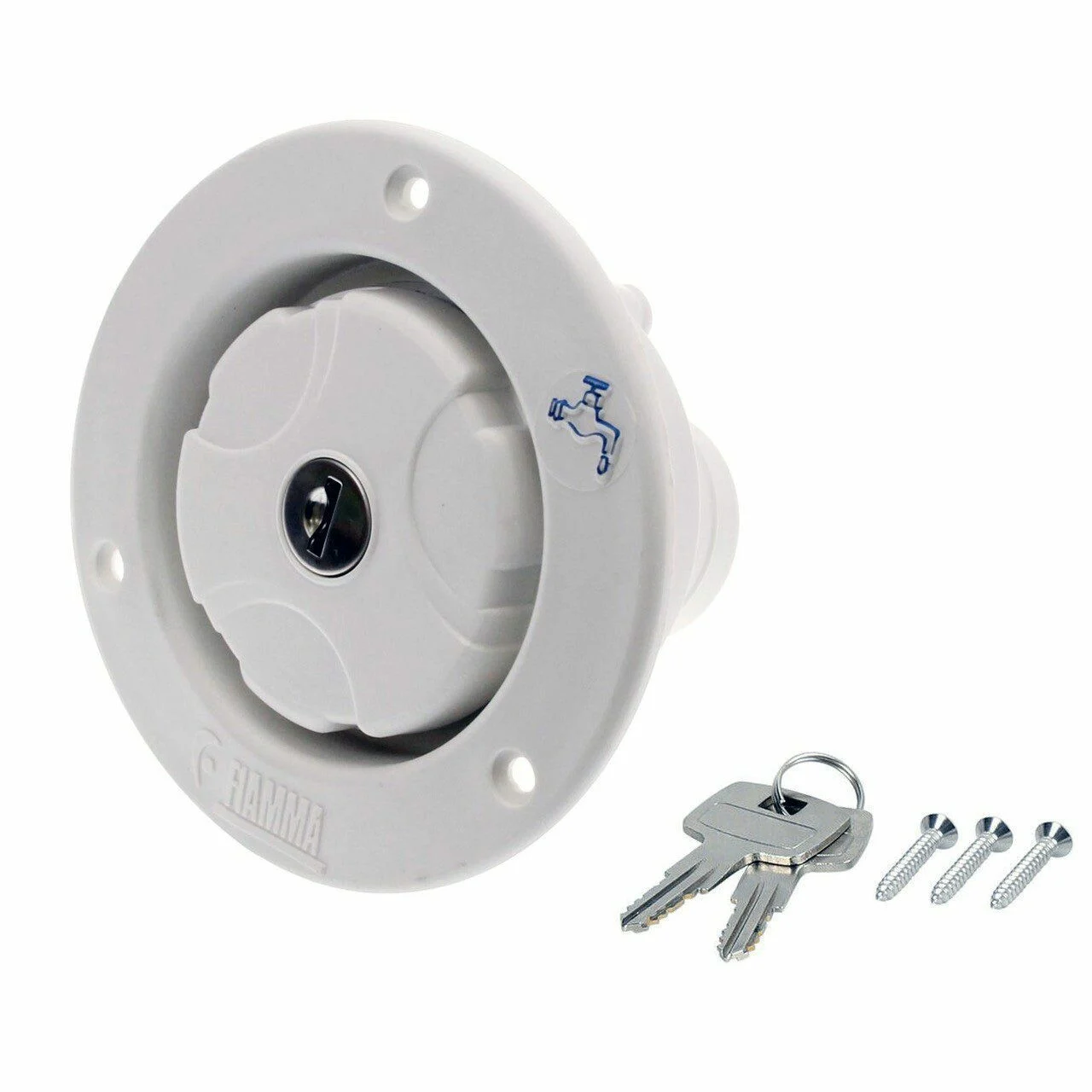

The Fiamma 94715-010 Locking Gravity Water Fill Inlet (White) from Nomadic Supply Company® allows you to fill the fresh water tank by loosely fitting a water hose to the fill inlet. Water should be filled at a low flow rate in order to have gravity to pull the water through the drinking water fill hose and into your camper van fresh water tank.
The Fiamma 94715-010 Locking Gravity Water Fill Inlet (White) includes a small water tap logo on the outside to indicate for water only.
Fiamma 94715-010 Locking Gravity Water Fill Inlet (White) Features:
- Fiamma 94715-005 Locking Gravity Water Fill Inlet has an outside diameter of 110mm (4.33″)
- Requires an 80mm wall cutout that extends for 35mm.
- The push on hose fitting, at the rear, will accept a 40mm internal diameter hose with clamp.
- Fitting includes a foam seal to suit a flat outside wall.
- Breather connection is a 10mm (3/8 inch) hose barb
- 1 year warranty
Fiamma 94715-010 Locking Gravity Water Fill Inlet (White) Specifications:
- Model: 006169, 800-01063, 80800160
- Brand: Fiamma
- Barcode: 8004815032098
- NOT keyed alike if requiring multiple
Fiamma 94715-010 Locking Gravity Water Fill Inlet (White) Documents:
Fiamma Product Catalog from Nomadic Supply Company®
