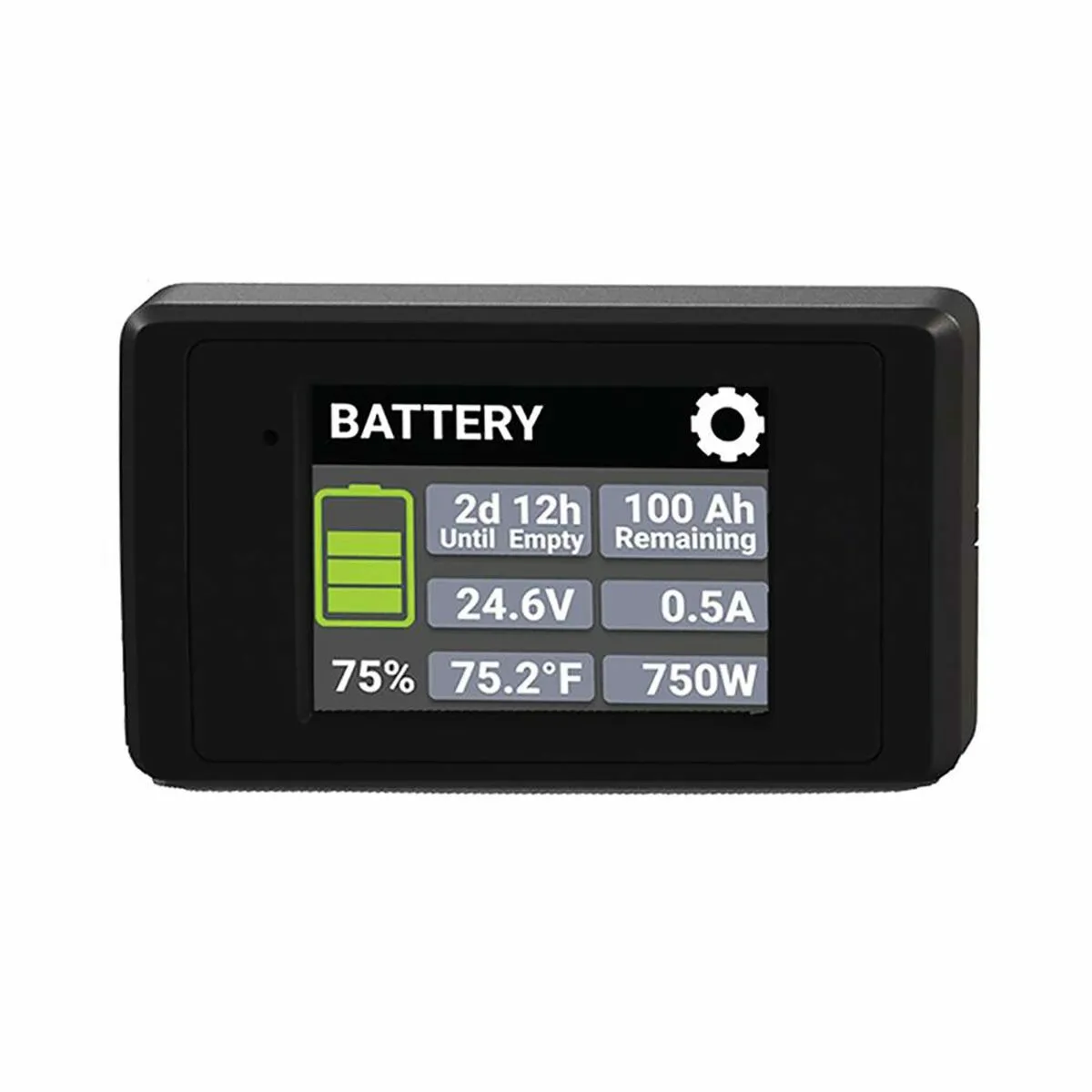

Understand your battery usage better with the Go Power! GP-BMG Battery Manager Kit from Nomadic Supply Company®. Update your battery bank and view your battery’s performance remotely with our Go Power! GP-BMG Battery Manager Kit.
Fit for all battery types, the Go Power! GP-BMG Battery Manager Kit gives you easy-to-understand battery stats at the push of a button. With integrated Bluetooth® Wireless Technology, you can view your battery’s performance from your connected smart device.
The Go Power! GP-BMG Battery Manager Kit is an easy upgrade that takes only a few minutes to install to add smart functionality to older battery banks. The Go Power! GP-BMG Battery Manager Kit is compatible with all battery types. Better understand battery use and power patterns with the intuitive touchscreen interface and smart shunt.
View your battery’s performance from your phone with Go Power! Connect app.
Go Power! GP-BMG Battery Manager Kit Features:
- Built-in light sensor for automatic dimming throughout the day
- Includes a 500A smart shunt
- Mobile app support
- 3″ touchscreen color display
- Multiple orientation options
Monitor essential battery statistics including:
- Time left at Current Draw
- State of Charge
- Capacity
- Voltage
- Current
Go Power! GP-BMG Battery Manager Kit Includes:
- Touchscreen color display
- 500A max shunt
- Ambient light sensor
- Connectivity cables
- RV-C and Bluetooth® compatible
Go Power! GP-BMG Battery Manager Kit Specifications:
| Display Size | 3.2 inches |
| Display Resolution | 320×240 |
| Touchscreen | Resistive |
| Supply Voltage | 12-48 VDC |
| Max Supply Current | @ 12 VDC Input – 400 mA
@ 24 VDC Input – 200 mA |
| Operating Temperature Range | -20 to +50 °C |
| Storage Temperature Range | -30 to +70 °C |
| Humidity | 5-95 % RH, non-condensing |
| Bluetooth Range | 50 meters |
| WiFi Bandwidth | 2.4 Ghz |
| LCD Screen | 320×240 resolution |
| Connectivity | 4 pin, 2mm pitch header connection |
Go Power! GP-BMG Battery Manager Kit Documents:
Go Power! GP-BMG Battery Manager Kit Specifications Sheet
Go Power! GP-BMG Battery Manager Kit Quick Start Guide
