The ORACLE Lighting ColorSHIFT RGB+W 230° Underbody Rock Light Kit Bluetooth Control from Nomadic Supply Company® delivers a stunning full-spectrum lighting experience beneath your vehicle with true 6000K white output and thousands of vibrant RGB color options. Engineered with an industry-leading 230° beam angle and 22 LEDs per pod, this kit bathes your wheel wells in brilliant, even light that transforms any rig from ordinary to extraordinary.
The ORACLE Lighting ColorSHIFT RGB+W 230° Underbody Rock Light Kit Bluetooth Control is built for real-world conditions, carrying an IP68 waterproof rating that makes it completely immune to water immersion and dust intrusion. Whether you’re crawling through mud, crossing streams, or simply cruising city streets after dark, the rugged aluminum housing with black powder-coat finish ensures the kit holds up wherever adventure takes you.
Designed for straightforward installation and intuitive daily use, the ORACLE Lighting ColorSHIFT RGB+W 230° Underbody Rock Light Kit Bluetooth Control connects each pod to a central Bluetooth control module via waterproof plug-and-play connectors. Ring-terminal battery leads with an inline fuse simplify the wiring process, while a pre-wired on/off switch and included wireless RF remote give you multiple convenient ways to take command of your lighting setup right out of the box.
ORACLE Lighting ColorSHIFT RGB+W 230° Underbody Rock Light Kit Bluetooth Control Features:
- Massive 230° Beam Angle: An ultra-wide 230° beam angle provides exceptional wheel-well coverage, reducing the need for multiple pods per wheel well and ensuring comprehensive illumination across the entire area.
- Dual-Control: The kit supports both Bluetooth smartphone app control and an included wireless RF remote, giving you flexible options for adjusting your lighting from wherever you are.
- TRUE 6000K White Mode Plus Thousands of ColorSHIFT® RGB Colors: A dedicated true 6000K white mode delivers crisp, bright white light, while the full ColorSHIFT® RGB palette unlocks thousands of color possibilities for any mood or occasion.
- 22 LEDs Per Pod with a Unique 3-Emitter Design: Each pod features 22 LEDs arranged in a unique three-emitter design specifically engineered to cover the full wheel-well area with consistent, even light output.
- Control Colors, Brightness, Strobing Patterns, and Music/Sound Reactive Modes: The system allows full control over colors, brightness levels, strobing patterns, and music or sound reactive modes, putting complete customization at your fingertips.
- Waterproof Plug-and-Play Connectors: Each pod connects to the central control module via waterproof plug-and-play connectors, making installation clean and straightforward without the need for complex wiring.
- Ring-Terminal Battery Leads + Inline Fuse: Ring-terminal battery leads paired with an inline fuse simplify the wiring process and provide reliable, protected power delivery to the entire system.
- Pre-Wired On/Off Switch: A pre-wired on/off switch is included for convenient manual control of the rock light kit whenever needed.
- IP68 Waterproof Rating: An IP68 rating means the kit is completely protected against water immersion and dust intrusion, making it fully capable of withstanding the harshest off-road environments.
- Aluminum Housing with Black Powder-Coat Finish: The aluminum housing with a black powder-coat finish provides long-lasting durability and strong resistance to corrosion, even in demanding conditions.
- 2000+ Lumens Total Output in White Mode: The kit produces over 2,000 lumens of total output in white mode, delivering powerful, high-visibility illumination across all four wheel wells.
- 28W Total System Wattage: The entire system draws just 28W total — seven watts per pod — keeping power consumption efficient without sacrificing light output.
- 11 ft Wire Length Per Pod: Each pod comes with 11 feet of wire, providing ample reach for clean routing and flexible placement across a wide variety of vehicle sizes.
- Input Voltage: 9V–32V: A broad input voltage range of 9V to 32V makes the kit compatible with both standard 12V and heavy-duty 24V electrical systems.
- App Compatible with iOS 7+ and Android 4.3+: The companion app is compatible with iOS 7 and later as well as Android 4.3 and later, ensuring broad smartphone compatibility for Bluetooth control.

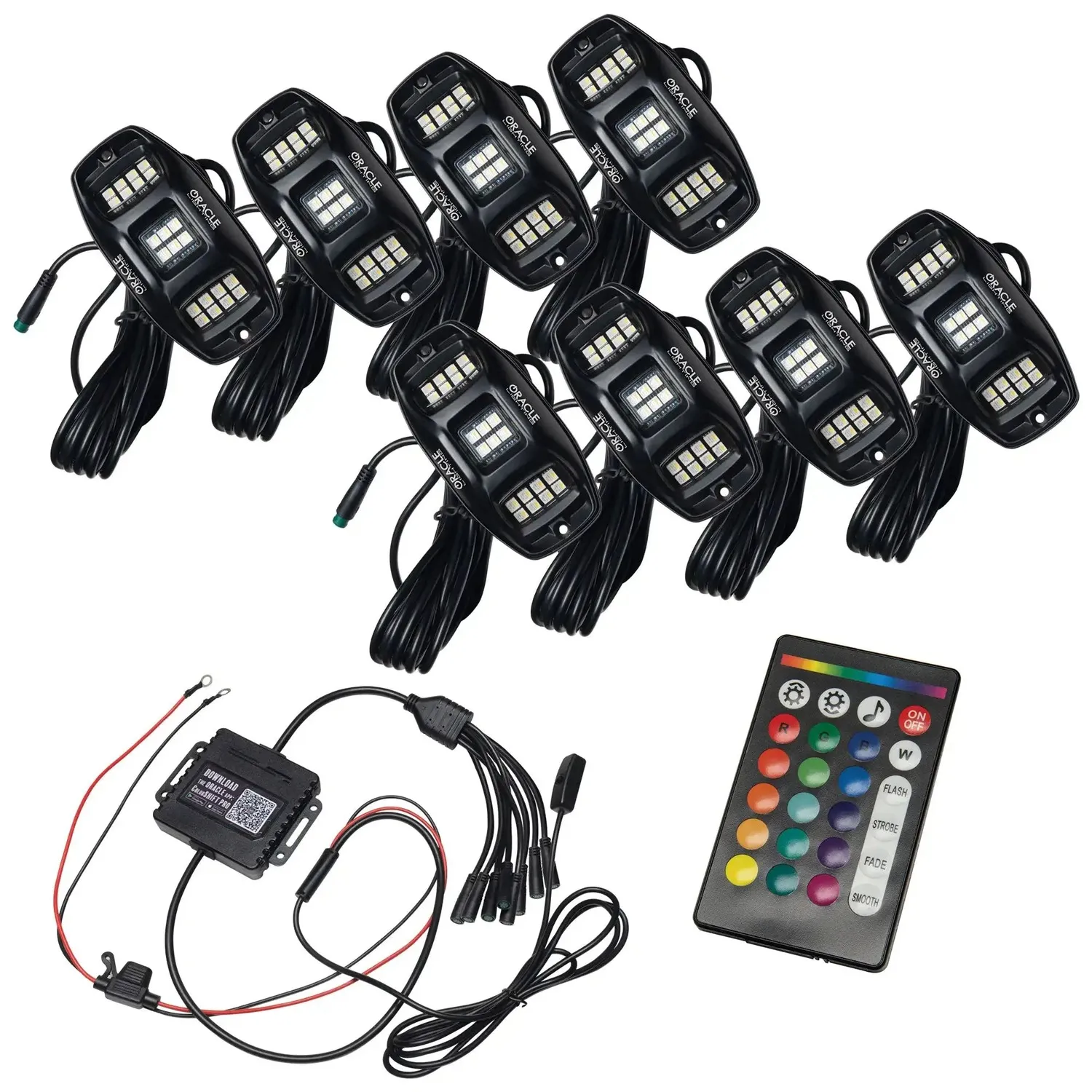

ORACLE Lighting ColorSHIFT RGB+W 230° Underbody Rock Light Kit Bluetooth Control Includes:
- (4) or (8) Oversized RGB+W Rock Light Pods
- Wireless RF Remote Control Pad
- Bluetooth Control Module with Splitter
- Rubber Mounts (for curved mounting)
- Pre-Wired On/Off Switch
- Installation Hardware
ORACLE Lighting ColorSHIFT RGB+W 230° Underbody Rock Light Kit Bluetooth Control Specifications:
- Input Voltage: 9V–32V
- LED Chip: 5050 RGBW
- LED Quantity: 22 LEDs per pod
- Total Output (White): 2000+ lm
- Total Wattage: 28W total (7W per pod)
- Beam Angle: 230° (Extra Wide Coverage)
- Housing: Aluminum
- Finish: Black Powdercoat
- Ingress Protection: IP68
- Wire Length (Each Pod): 11 ft
- Warranty: 1 Year
- Amp Draw Per Pod @ 12V — Red: 0.56A
- Amp Draw Per Pod @ 12V — Green: 0.65A
- Amp Draw Per Pod @ 12V — Blue: 0.56A
- Amp Draw Per Pod @ 12V — White: 0.63A
- App Compatibility: iOS 7+, Android 4.3+
ORACLE Lighting ColorSHIFT RGB+W 230° Underbody Rock Light Kit Bluetooth Control Documents:
ORACLE Lighting ColorSHIFT RGB+W 230° Underbody Rock Light Kit Bluetooth Control Download Installation Guide
ORACLE Lighting ColorSHIFT RGB+W 230° Underbody Rock Light Kit Bluetooth Control Download Wiring Diagram
