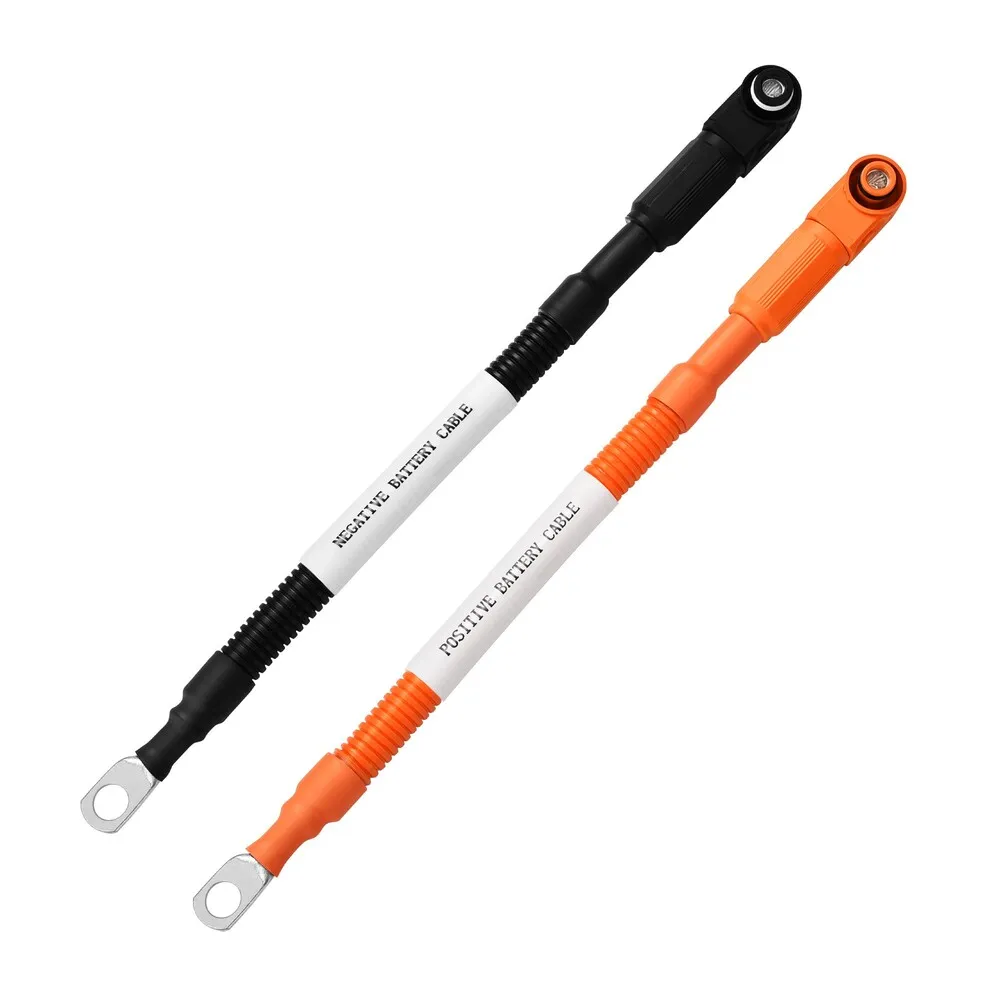

The Rich Solar 4 AWG 3/8” Battery Cables (RS-BCC4A9) from Nomadic Supply Company® is a heavy-duty pure copper power cable designed for reliable connections between batteries, inverters, and charge controllers. Built with 665 strands of oxygen-free copper and UL/CSA approved PVC insulation rated to 600 volts, this cable delivers maximum conductivity with minimal resistance. The pre-assembled lug terminals provide a secure, corrosion-resistant connection that stands up to demanding RV, marine, and off-grid solar installations.
Rich Solar 4 AWG 3/8” Battery Cables (RS-BCC4A9) Features:
- Pure Copper Construction. Made with 665 strands of oxygen-free copper for maximum conductivity and minimal voltage drop across the cable run.
- Pre-Assembled Lug Terminals. Factory-crimped ” ring terminals on both ends with a lifetime crimp warranty eliminate field termination guesswork.
- 600V Rated Insulation. Heavy-duty PVC insulation is UL and CSA approved, VW-1 rated for flame resistance, and moisture-proof for demanding environments.
- Wide Temperature Range. Operates reliably from -67°F to +275°F, making it suitable for engine bays, outdoor solar installations, and marine applications.
- Color-Coded Pair. Red and black cables for clear positive/negative identification, reducing the risk of reverse polarity during installation.
- ROHS Compliant. Meets ROHS environmental standards with 1,500 psi tensile strength and 500 V/mil dielectric strength for safe, durable power delivery.
Rich Solar 4 AWG 3/8” Battery Cables (RS-BCC4A9) Specifications:
- 4 AWG heavy-duty battery cable designed for high-current applications
- Wire Gauge: 4 AWG
- Voltage Rating: 1000 V
- Rated Current: 120A
- Terminal Stud Size: 3/8 in
- Cable Length: 250 mm
- Temperature Rating: 221°F
