The RICH SOLAR 50 Watt Solar Panel Kit from Nomadic Supply Company® delivers reliable off-grid power generation with professional-grade MPPT technology and comprehensive electronic protection systems. This complete solar solution combines a durable monocrystalline panel with an advanced charge controller to provide efficient energy harvesting for RVs, cabins, boats, and remote applications.
The RICH SOLAR 50 Watt Solar Panel Kit features innovative maximum power point tracking technology that achieves up to 99% tracking efficiency and 98% peak conversion efficiency, ensuring optimal energy capture throughout varying weather conditions. The system automatically recognizes 12V or 24V DC configurations and provides comprehensive battery compatibility with sealed, gel, flooded, and lithium deep-cycle options.
Built for durability and ease of installation, the RICH SOLAR 50 Watt Solar Panel Kit includes pre-drilled mounting holes and comes complete with all necessary cables, brackets, and hardware for immediate deployment. The LCD display and LED indicators provide real-time system monitoring, while multiple safety protections guard against electrical faults and ensure long-term reliable operation.
RICH SOLAR 50 Watt Solar Panel Kit Features:
- 12V off-grid solar panel: 12V off-grid solar panel with 0~+5W guaranteed positive power output
- IP67 rated construction: IP67 rated solar panel built with strong tempered glass and aluminum frame
- Environmental certification: Certified to withstand challenging environmental conditions
- Versatile mounting options: Easy installation and handling for various applications with pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts
- Inverter compatibility: Compatible with on-grid and off-grid inverters
- Extended warranty coverage: 25-year power output warranty and 10-year workmanship warranty on solar panel
- Automatic voltage detection: Automatically detects 12V or 24V DC system voltages
- Battery compatibility: Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
- MPPT technology: Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
- Electronic protection systems: Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
- Display and indicators: LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
- Load control features: Features diverse load control; also capable of charging over-discharged lithium batteries
- Heat dissipation design: Die-cast aluminum design allows for efficient heat dissipation
- Communication capability: RS232 port to communicate with BT-1 Bluetooth module
- Controller warranty: 2-Year Warranty on MPPT controller

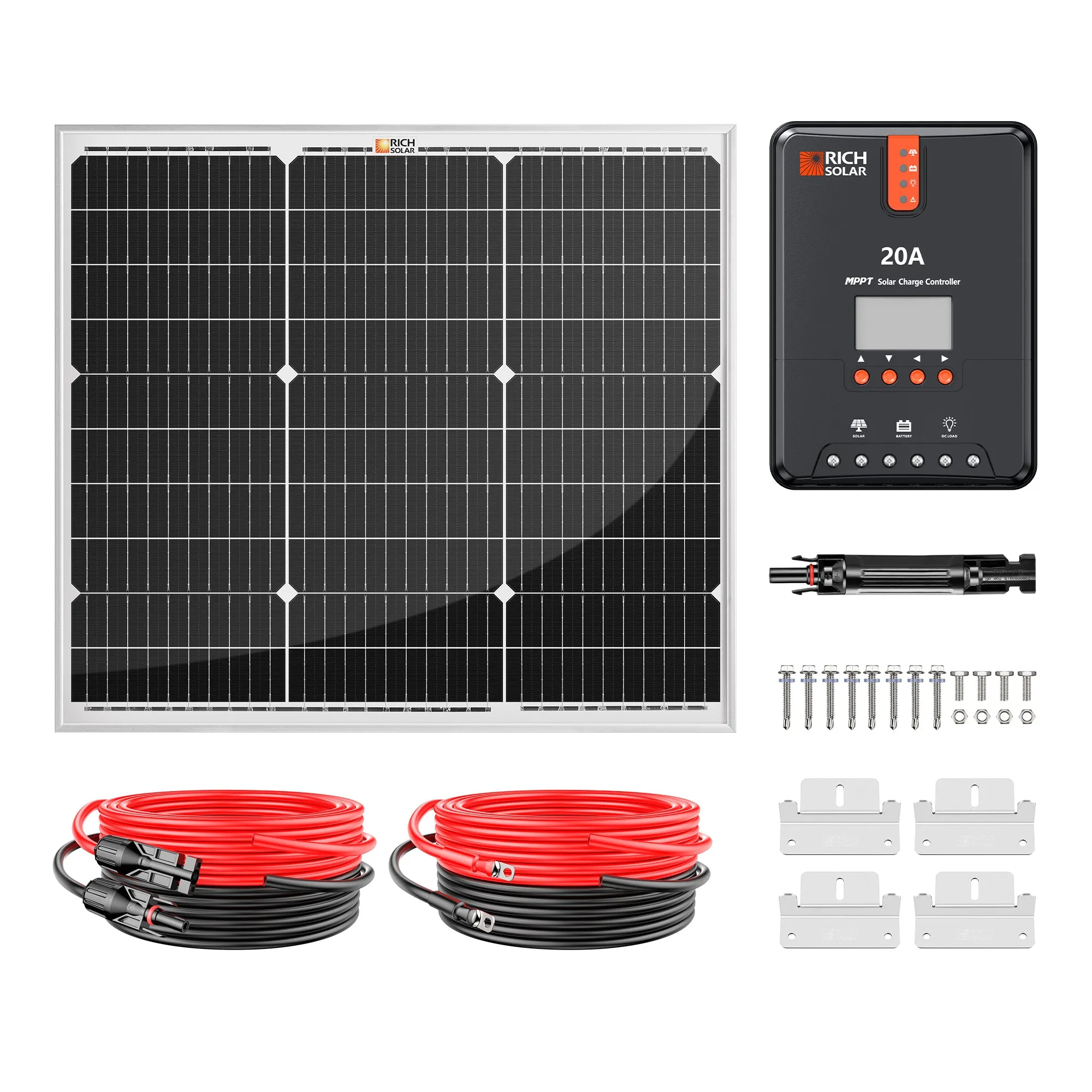

RICH SOLAR 50 Watt Solar Panel Kit Includes:
- 1 x 50 Watt Monocrystalline Solar Panel
- 1 x 20A MPPT Solar Charge Controller
- 1 x 20′ 10 Gauge Solar Cable (Red), connects the solar panel to the controller
- 1 x 20′ 10 Gauge Solar Cable (Black), connects the solar panel to the controller
- 1 x 10′ 10 Gauge Battery Cable (Red), connects controller to battery
- 1 x 10′ 10 Gauge Battery Cable (Black), connects controller to battery
- 1 x Mounting Z Brackets (one set)
- 1 x 10A Inline Fuse Holder with Fuse
RICH SOLAR 50 Watt Solar Panel Kit Specifications:
- Maximum Power(Pmax): 50W
- Maximum Power Voltage(Vmp): 17.6V
- Maximum Power Current(Imp): 2.84A
- Open Circuit Voltage(Voc): 20.8V
- Short Circuit Current(Isc): 3.13A
- Maximum System Voltage(Vmax): 1000VDC
- Maximum Series Fuse Rating: 10A
- Solar Panel Weight: 8lb
- Solar Panel Dimensions: 22.8×20.5×1.2in
- Nominal System Voltage: 12V/24V Auto Recognition
- Rated Battery Current: 20A
- Rated Load Current: 20A
- Max. PV Input Short Current: 25A
- Max. Battery Voltage: 32V
- Max Solar Input Voltage: 100 VDC
- Controller Net Weight: 3.08 lb
- Discharge Circuit Voltage Drop: ≤0.15V
- Controller Overall Dimensions: 8.27 x 5.94 x 2.34 in
RICH SOLAR 50 Watt Solar Panel Kit Documents:
RICH SOLAR 50 Watt Solar Panel Kit Owner’s Manual
