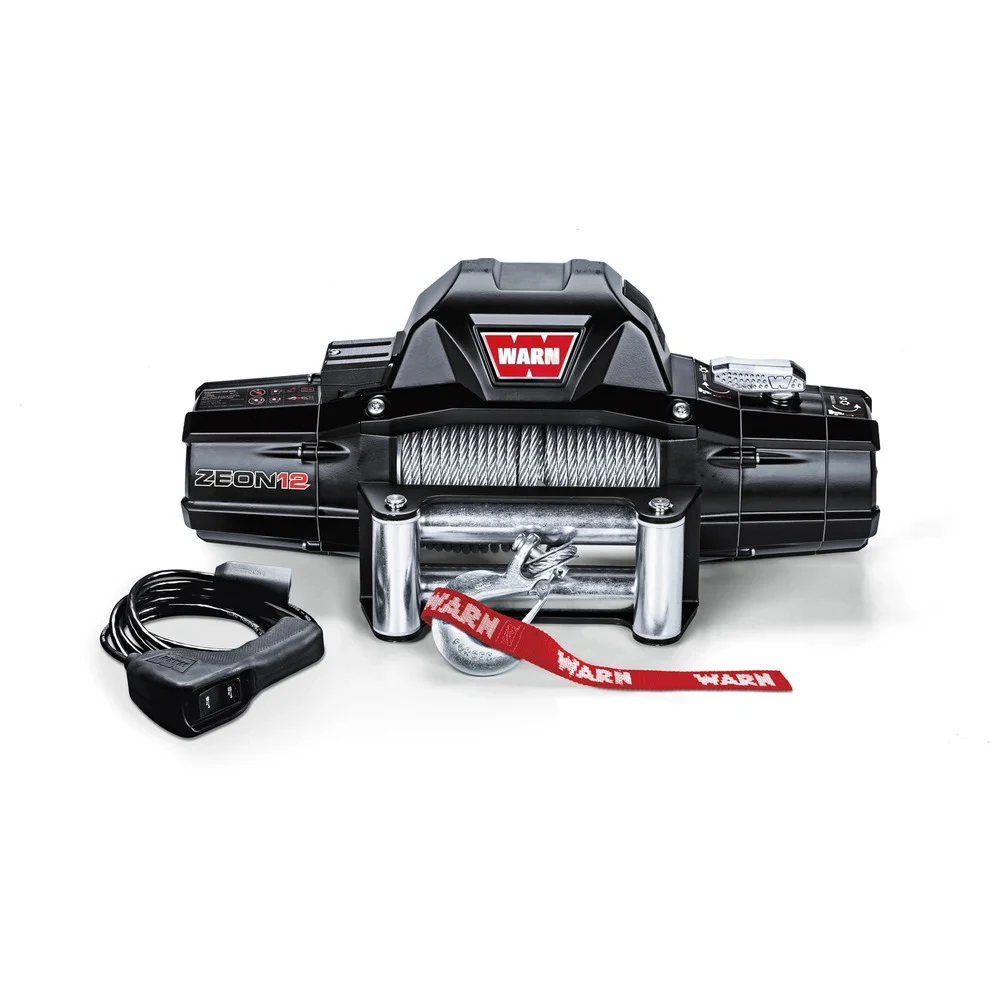

The Warn ZEON 12 Winch – 24V (90666) from Nomadic Supply Company® delivers serious recovery power for full-size trucks and built-out 4x4s running 24-volt electrical systems. Engineered and assembled in the USA, the Warn ZEON 12 Winch – 24V (90666) combines industry-leading waterproofing, corrosion resistance, and lightning-fast line speeds to keep you moving when the trail gets tough.
The Warn ZEON 12 Winch – 24V (90666) is built around automotive-grade busbars, full metal armor, and a robust planetary gear drive that work together to maximize both durability and electrical efficiency. Whether you are crawling over rocks or pulling a stuck rig out of deep mud, the Warn ZEON 12 Winch – 24V (90666) is rated at 12,000 lbs of line pull and tested to withstand 408 hours of rigorous salt-spray exposure — twice the corrosion resistance of entry-level winches.
The Warn ZEON 12 Winch – 24V (90666) features full IP68 waterproofing, meaning water and the elements are effectively sealed out of every critical component. Its large-diameter drum promotes longer rope life, and the unique rope attachment point is engineered for lasting durability across countless recovery cycles.
Warn ZEON 12 Winch – 24V (90666) Features:
- Industry-Leading Warranty: Limited lifetime coverage on mechanical components and seven-year coverage on electrical components.
- 24-Volt Application Specific: Specifically designed for 24-volt vehicle applications, making it an ideal match for heavy-duty trucks and purpose-built 4x4s with 24-volt electrical systems.
- Automotive-Grade Busbars: Automotive-grade busbars replace unsightly wires for greater electrical efficiency, superior connection, and a cleaner look.
- Full Metal Armor: Full metal armor protects vital components from impact and damage.
- Superior Corrosion Resistance: Twice the corrosion resistance of entry-level winches; rated to 408 hours in rigorous salt-spray tests.
- Fast No-Load Line Speed: Fast no-load line speed, up to 22% faster than Warn’s Standard Duty winches.
- Includes Roller Fairlead: Includes roller fairlead but no rope.
- Full IP68 Waterproofing: Full IP68 waterproofing to keep water and the elements out.
- Large Diameter Drum: Large diameter drum for longer rope life; unique and durable rope attachment point.
- Planetary Gear Drive: A planetary gear drive delivers smooth, powerful, and reliable pulling performance under heavy loads.
- Convertible Control Pack: A convertible control pack offers flexible mounting and configuration options to suit a variety of vehicle setups.
- Wired Remote: A wired remote gives the operator precise, hands-on control during recovery situations.
- Designed, Engineered, and Assembled in the USA: Designed, engineered, and assembled in the USA.
- Great for full-size 3/4-ton and 1-ton trucks and bigger, built 4x4s with 24-volt electrical systems
- Requires Winch Carrier or Winch Mount
Warn ZEON 12 Winch – 24V (90666) Specifications:
- Cable Length: N/A FT
- Cable Material: Not Included
- Fairlead Type: Not Included
- Motor Voltage: 24V
- Rated Line Pull: 12,000 LB
- Waterproof Rating: IP68
- No-Load Line Speed: 33 ft/min
- Salt-Spray Rating: 408 hrs
- Capacity Range: 8,000–12,000 lbs
