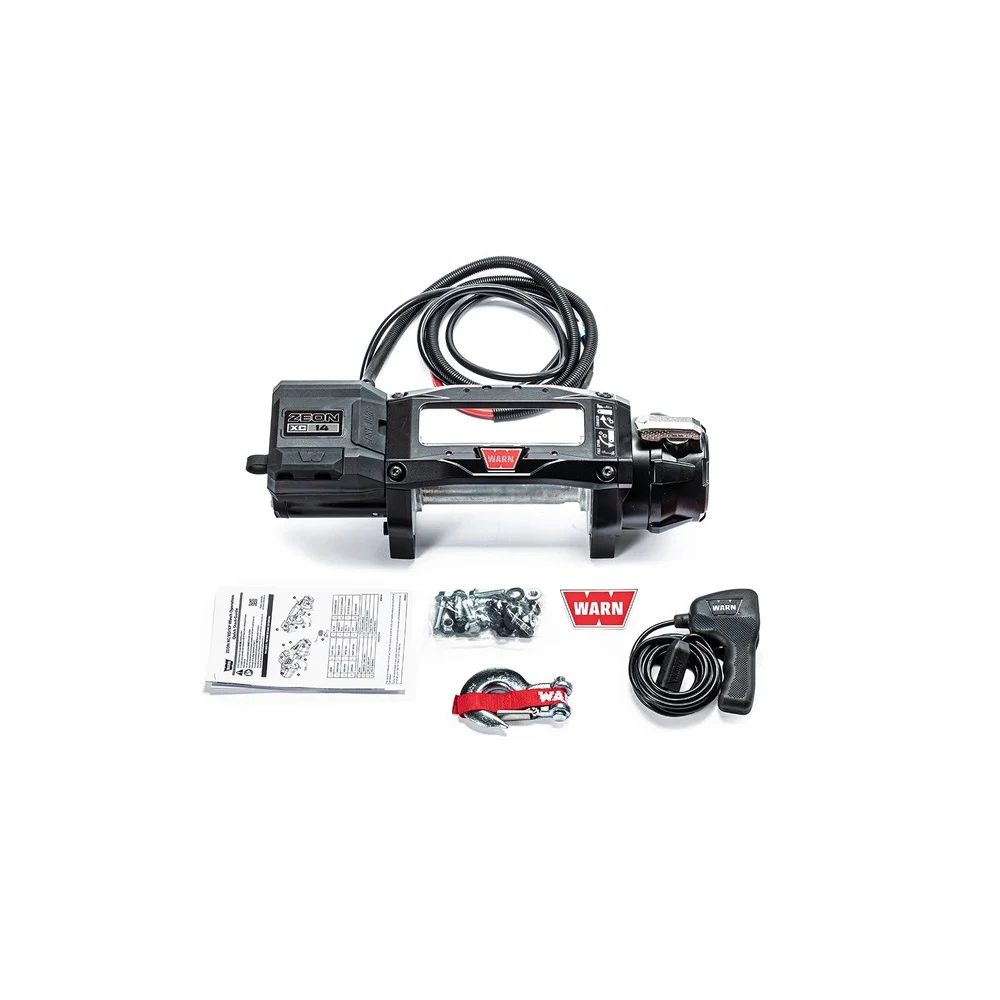

The Warn ZEON XC 14 14,000 lb. Winch (110314) from Nomadic Supply Company® delivers best-in-class line speed and rugged durability in a compact, low-profile package purpose-built for 3/4-ton and 1-ton trucks, large SUVs, and heavy rigs. Backed by an industry-leading warranty and proudly designed, engineered, and assembled in the USA, the Warn ZEON XC 14 sets the standard for professional-grade recovery winches.
The Warn ZEON XC 14 14,000 lb. Winch achieves a remarkable balance between raw pulling power and a slim footprint, thanks to its 3-Stage Planetary gearing system with a 213:1 gear ratio and a series wound 12V motor. Whether you are crawling remote trails or pulling heavy loads on a job site, the Warn ZEON XC 14 gives you the confidence to tackle demanding recovery situations with a winch that is fully waterproof, corrosion-resistant, and engineered for long-term reliability.
Featuring IP68 and IP69K ratings, the Warn ZEON XC 14 14,000 lb. Winch withstands deep submersion and high-pressure water spray, making it equally at home in muddy riverbeds, heavy rain, or dusty desert environments. The relocatable remote socket, automatic cone brake with free-spooling capability, and included wire remote round out a feature set that prioritizes both convenience and safety during every recovery.
Warn ZEON XC 14 14,000 lb. Winch (110314) Features:
- Compact, Low-Profile Design: The entire control pack sits below the top of the tie plate, making it possible to mount this winch in the tightest applications.
- Relocatable Remote Socket: The remote socket can easily be relocated within 9″ of the control pack for added mounting versatility.
- Ultimate Performance and Durability: Best-in-class line speed and superior durability make the Warn ZEON XC 14 a top-tier choice for serious recovery scenarios.
- Fully Waterproof: IP68 submersion and IP69K spray rated, achieved through the use of automotive-grade O-ring seals.
- OEM-Grade Corrosion Resistance: OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring the ZEON XC stays pristine for years to come.
- Rope Not Included: This specific ZEON XC does not include rope.
- Industry-Leading Warranty: Limited lifetime mechanical, seven-year electrical — all backed by a global service network.
- Made in the USA: Designed, engineered, and assembled in the USA.
- 14,000 lb. Rated Line Pull Capacity: Ideal for 3/4-ton and 1-ton trucks, large SUVs, and heavy rigs.
- 3-Stage Planetary Gearing: Features a 213:1 gear ratio for powerful, controlled line retrieval.
- Series Wound 12V Motor: A series wound 12V motor powers the Warn ZEON XC 14 for consistent, high-output performance.
- Automatic Cone Brake with Free-Spooling Capability: An automatic cone brake provides secure load holding, while the free-spooling capability allows for quick and easy line deployment.
- Power Out Feature: Power out feature included for controlled line extension under load.
- Wire Remote Included: A wire remote is included for safe, hands-on winch operation from a distance.
- 4-Bolt Mounting Pattern: Features a 10 IN width x 4.5 IN length mounting pattern for secure, stable installation.
Warn ZEON XC 14 14,000 lb. Winch (110314) Specifications:
- Brake Activation: Automatic
- Brake Type: Cone
- Cable Length: N/A FT
- Cable Material: Not Included
- D Shackle Included: No
- Fairlead Type: Not Included
- Free Spooling: Yes
- Gear Ratio: 213:1
- Gearing: 3-Stage Planetary
- Hand Saver: Yes
- Length: 22 IN
- Maximum Height: 7.8 IN
- Maximum Width: 6.7 IN
- Motor Type: Series Wound
- Motor Voltage: 12V
- Mounting Bolt Pattern Length: 4.5 IN
- Mounting Bolt Pattern Width: 10 IN
- Mounting Hole Quantity: 4
- Power Out: Yes
- Rated Line Pull: 14,000 LB
- Remote Included: Yes
- Remote Type: Wire
- Solenoid Type: Yes
- Type: Electric
- Voltage: 12V
